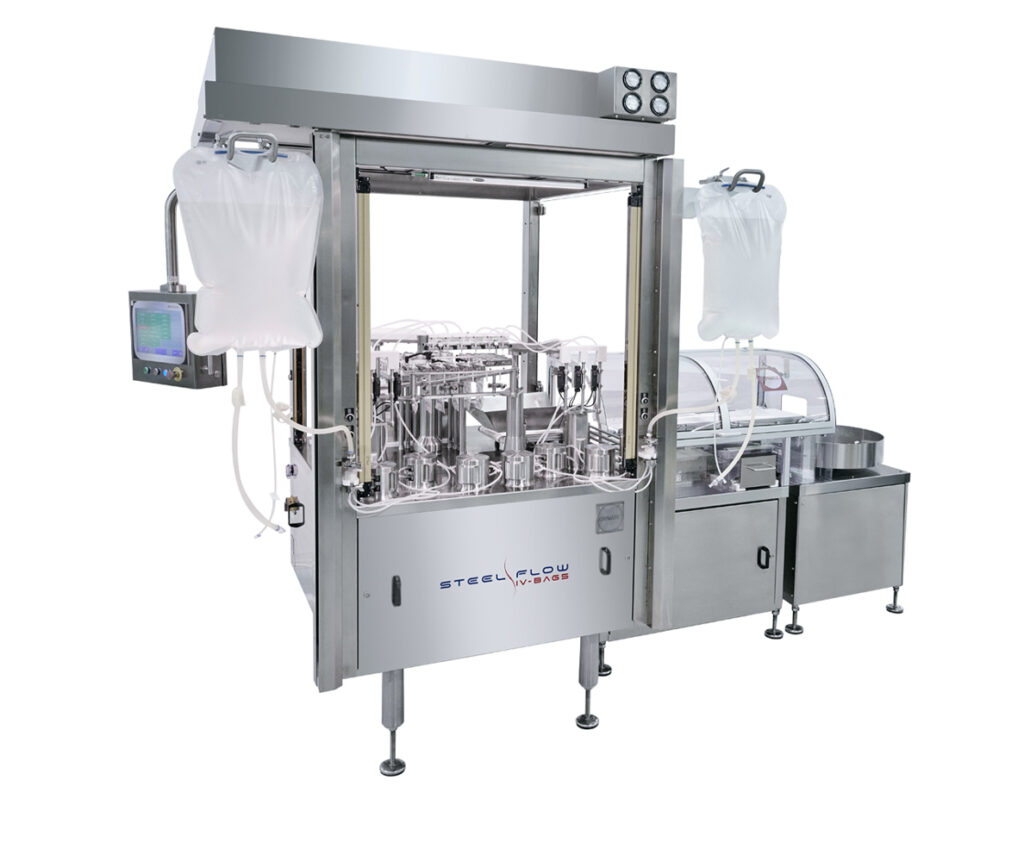

Experience the most precise IV bag filler machine with advanced technology.
Flexible and Aseptic IV Bag Processing
Designed for the semi-automated filling of IV bags.
The system is a gripper-style rotary indexing multi-station mono-block.
It features a station for the manual positioning of the IV bags, a filling station, a filled bag outfeed station, incorrect fill reject station.
The operator manually triggers the machine cycle after the positioning of the empty IV bags.
- Compact design limiting the number of required operators
- Quick repeatable changeovers that do not require changing parts
- Needle change over station for quick needle changes
- Mechanical servo-driven motions
- Up to 6 Steelheart peristaltic pumps
- Flowmeter IV bag fill confirmation
- Touch screen control
- Machine controlled with an Industrial PLC.
- Integrated Euroguard/light curtain safety enclosure
*Speed and performance criteria are subject to testing with actual samples and the number of pumps selected.
**BPM = Bags Per Minute
Catergory:
Monoblock System
Application:
Filling
Speed:
30 BPM
Base Features:
Versatile: Capable of filling and sealing a wide range of bag sizes (50mL to 5L+), and accommodates various connector types and sealing methods like stopper, thermal, US, and RF.
Precise: Achieve high-precision filling (±0.5%) using either a peristaltic pump or a mass flow meter.
Efficient: Offers semi-automatic operation (manual loading, automated processing) with quick changeovers, leading to high output capabilities (up to 6,000 bags per hour).
Compliant: Built with FDA-approved, aseptic-ready materials and adheres to stringent standards including GAMP5, UL/CE, and CFR 21 Part 11.
